Product Info

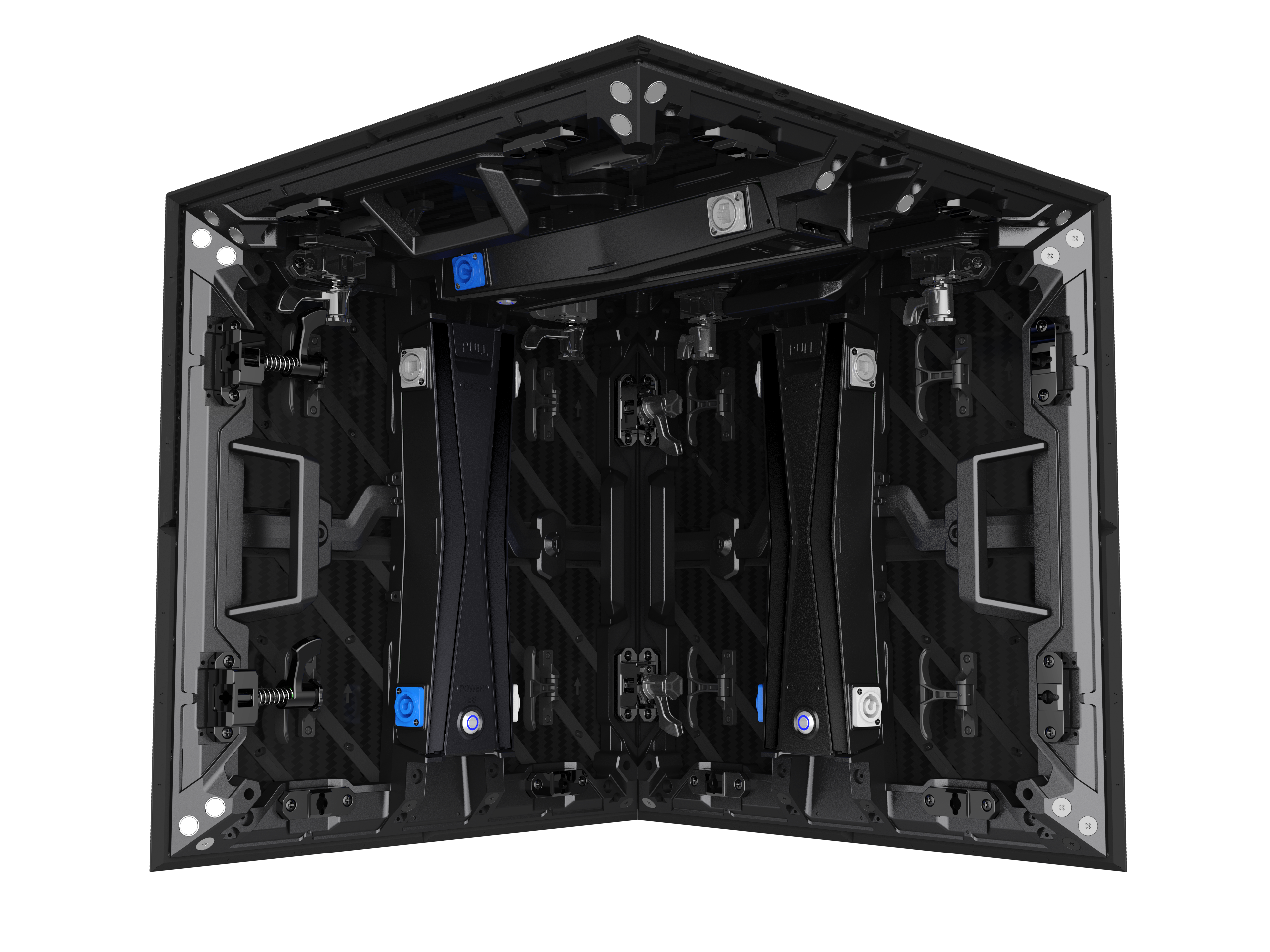

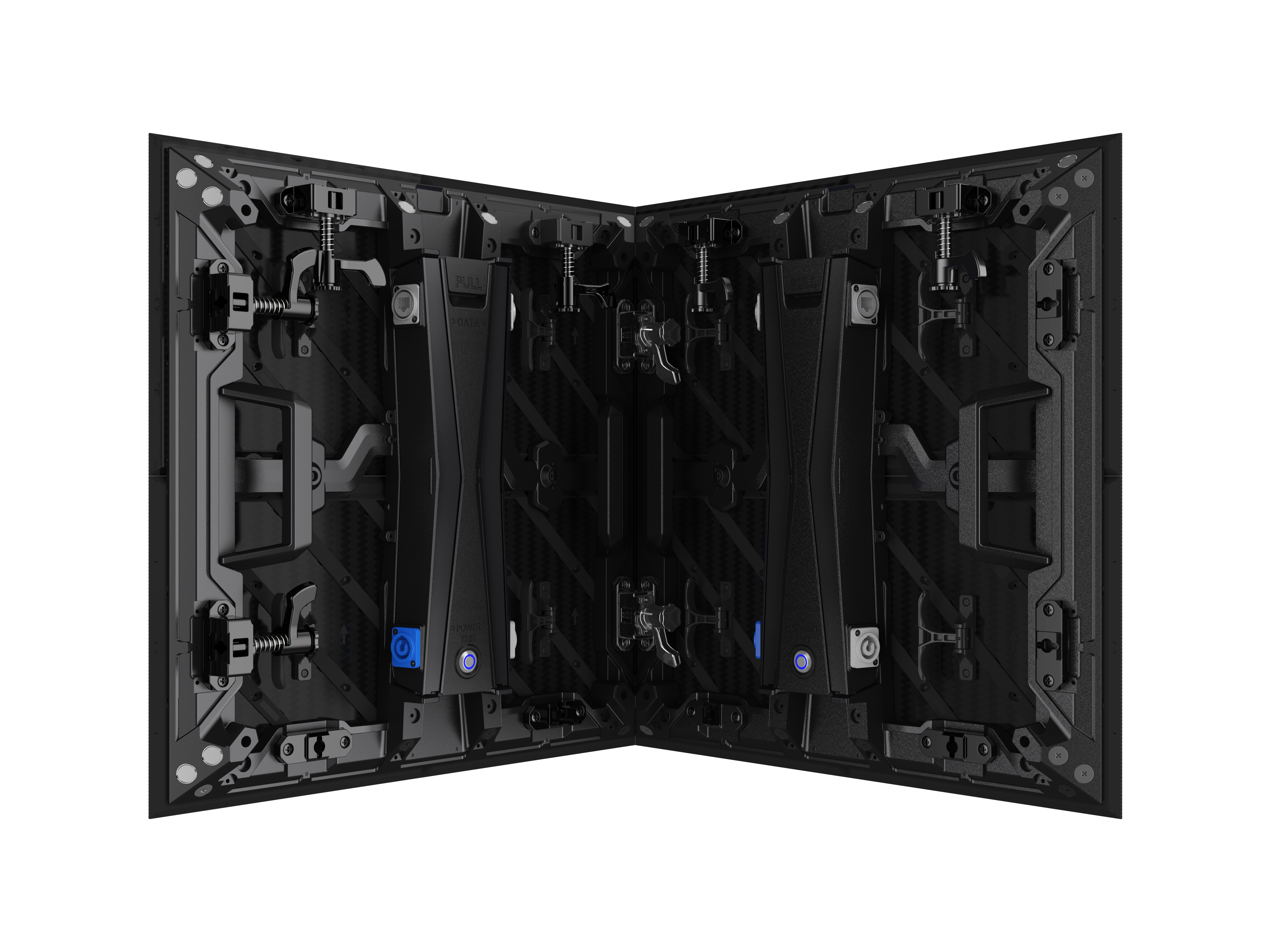

The UpadIV2-C is an indoor LED display unit engineered for cube and corner applications. Built with a die-cast magnesium frame, it supports seamless mixing assembly with standard UpadIV panels. With front and rear maintenance access, high brightness, and a 1:1 aspect ratio, the UpadIV2-C is perfect for creative installations across a wide range of event and display scenarios.
Features & Specifications
- Pixel Pitch: 2.6mm
- LED Type: 3-in-1 Black SMD
- Brightness: 1200 cd/m²
- Panel Resolution: 192 × 192 pixels
- Pixel Density: 147,456 pixels/m²
- Panel Size: 500 × 500 × 72 mm
- Weight: 7.2 kg per panel
- Viewing Angle: 160° (H) / 160° (V)
- Contrast Ratio: 6,000:1
- Refresh Rate: 7680 Hz
- Power Consumption: Max 160W / Typical 55W
- Scan Method: 1/16
- Mounting Options: Hanging, Stacking
